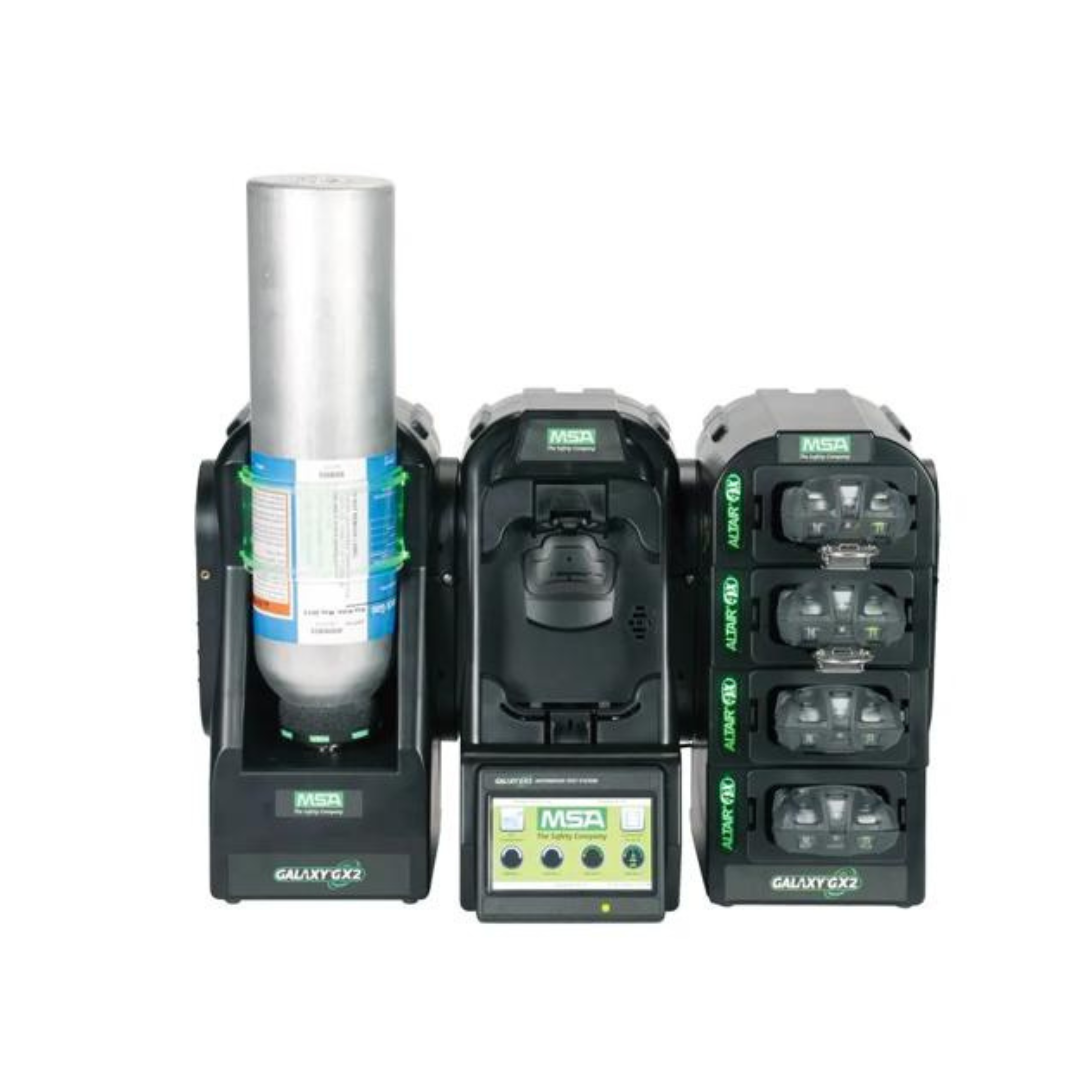

The MSA 10128636 GALAXY GX2 Automated Test Stand is a fully automated instrument management platform engineered for organizations operating fleets of ALTAIR 5 and ALTAIR 5X gas detectors.

Designed to streamline safety compliance procedures, the system automatically performs bump tests, calibrations, detector configuration updates, and data logging without operator intervention. Simply docking a compatible gas detector initiates the testing sequence, reducing manual handling and ensuring consistent testing protocols.

Equipped with a 4-valve gas manifold, the system supports up to four independent calibration gas cylinders, allowing maximum flexibility for multi-gas detector maintenance. The integrated color touchscreen provides intuitive operation, while compatibility with MSA Link™ Pro Software enables advanced reporting, compliance tracking, and fleet management.

Key Features & Benefits
  • Part Number: 10128636
  • Designed for ALTAIR 5 and ALTAIR 5X Gas Detectors
  • Fully Automated Bump Testing and Calibration
  • Integrated 4-Valve Gas Manifold
  • Supports Up to 4 Calibration Gas Cylinders
  • Color Touchscreen User Interface
  • Automatic Detector Recognition
  • SD Card Data Storage Capability
  • Rapid Test Execution
  • Expandable Modular Test Station Design
  • Compatible with MSA Link™ Pro Software
  • Automated Compliance Reporting
  • Reduces Calibration Gas Consumption
  • Multi-Language User Interface
Applications
  • Oil & Gas Facilities
  • Petrochemical Plants
  • Refineries
  • Utilities
  • Mining Operations
  • Manufacturing Facilities
  • Chemical Processing Plants
  • Industrial Safety Programs
  • Confined Space Entry Operations
  • Fleet Gas Detection Management
Technical Specifications
Specification Details
Brand MSA Safety
Part Number 10128636
Product Name GALAXY GX2 Automated Test Stand
Compatible Instruments ALTAIR 5 & ALTAIR 5X
Configuration 4-Valve EU Version
Calibration Gas Inputs 4 Independent Cylinders
Display Type Full-Color Touchscreen
Data Storage SD Card
Power Supply 100–240 VAC, 47–63 Hz
Plug Type European Plug
Housing Material ABS with Over-Molded Rubber
Operating Temperature 0°C to 40°C
Height 304 mm
Width 210 mm
Depth 208 mm
Weight 1.60 kg
Performance Specifications
Function Performance
Bump Test Time Approximately 15 Seconds
Full Calibration Time Approximately 60 Seconds
Automatic Test Initiation Yes
Detector Configuration Updates Yes
Compliance Data Logging Yes
Fleet Reporting Yes
Advanced Operational Features
  • Touch-Free Automated Operation
  • Automatic Detector Dock Recognition
  • Real-Time Pass/Fail Status Monitoring
  • Calibration Gas Monitoring
  • Cylinder Expiration Tracking
  • Expandable Test Bank Architecture
  • Shared Data Communication Network
  • Automated Email Notifications
  • Detector Configuration Management
  • Regulatory Compliance Reporting
Expandability & Connectivity
  • Supports Up to 10 Linked Test Stands
  • Supports Up to 4 Electronic Cylinder Holders
  • Shared Communication Platform
  • Integrated Fleet Management Capabilities
  • Compatible with MSA Link™ Pro Software
  • Centralized Detector Administration
What's Included
  • MSA 10128636 GALAXY GX2 Test Stand
  • 4-Valve Calibration Manifold
  • EU Power Adapter
  • User Documentation
FAQ

Q1: Which gas detectors are compatible with the 10128636 GALAXY GX2?
This configuration is specifically designed for MSA ALTAIR 5 and ALTAIR 5X Multigas Detectors.

Q2: How many calibration gas cylinders can be connected?
The integrated manifold supports up to four independent calibration gas cylinders simultaneously.

Q3: Does the system automatically start testing?
Yes. The GALAXY GX2 automatically initiates testing when a compatible detector is inserted into the cradle.

Q4: Can multiple test stands be connected together?
Yes. Up to 10 GALAXY GX2 test stands can be linked into a centralized testing network.

Q5: Does the system store compliance records?
Yes. Test data can be stored and managed through SD card logging and MSA Link™ Pro Software integration.
Safety Standards

Automated Compliance Management
Calibration Verification
Real-Time Detector Status Monitoring
Calibration Gas Tracking
Pass/Fail Test Validation
Fleet Safety Reporting
Detector Configuration Control
